SHACKMAN reromanus DIY SPEAKER KITS
|
||
All Shackman
reromanus speaker kits can be built
alternatively either with: R.A.E. OTL tube amps or R.A.E. OTL transistor amps or with standard Shackman stepup transformers. Later upgrading from stepup transformer to OTL amp is possible. |
|
All Shackman reromanus speaker kits can be built
alternatively:
with all different versions/types of the Shackman ESLs (MHT, ESLAB-Barker, WR etc). They can also be used in one's own DIY Hybrid ESL project. |
Römer-ESL-Horn MkIV - Thinking Physics to its End
Excerpt from the constructions drawings of the latest MKIV version of the Römer ESL Horn, Harmonic combination of impulse-true Bass driver and ESL. The lf-horn is a hypex based construction with impedance-matching and tuned with reactance anulling
Die Faltung ist eine Hypex-Tractrix Symbiose mit Entwicklungsschwerpunkt auf dem Impulsverhalten und Linearität des Amplitudengangs. Der synergetische Effekt besteht in einer Nutzung des maximalen Strahlungswiderstandes über einen möglichst großen Frequenzbereich.
Die Prinzipien des Reactance-Annulling und Impedance-Matching nach Plach wurden in diese Entwicklung integriert. Die untere Grenzfrequenz der Hornparameter wurde deshalb nicht nach unten überzogen. so dass über den benutzbaren Horn-Wirkungsbereich auch ein echter Strahlungswiderstand effektiv wirksam wird.
For more Information on that special LF.horn design ask for our our free brochure "FLMFR Horns" (Front Loaded Matched Frequency Response Horns)
For more information go to our catalogue site
Below pictures of a DIY customized Römer ELS Horn MkIV and appropriate dipole subwoofers (optional)
Some history of the Römer-ESL-Horn

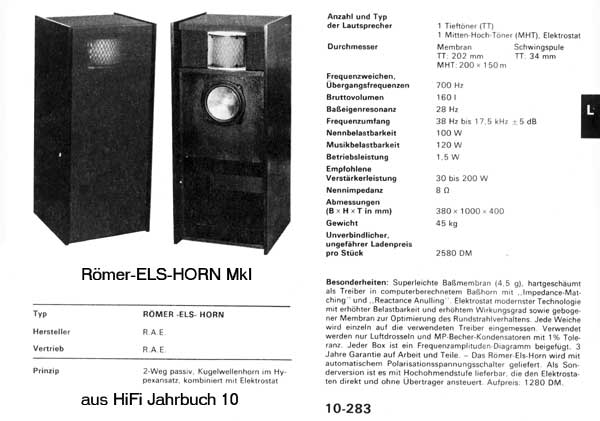

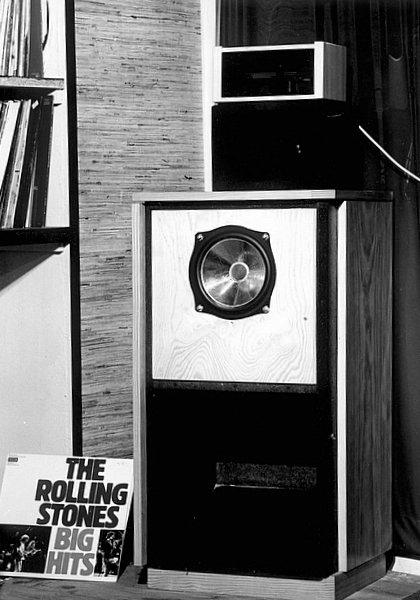

The original MKI, HiFi-Yearbook 10, 1980 (left) and the MKIII type,1986 with OTL-V-Typ-MHT tube amp (right)
Die MKII version of1983 without Subwoofer DCS1 (left) and with Subwoofer and the R.A.E. tube amplifier "Clarity" (right)

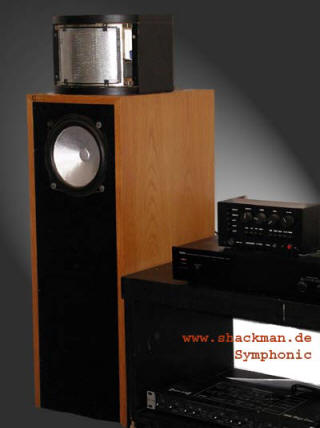

Shackman reromanus Symphonic

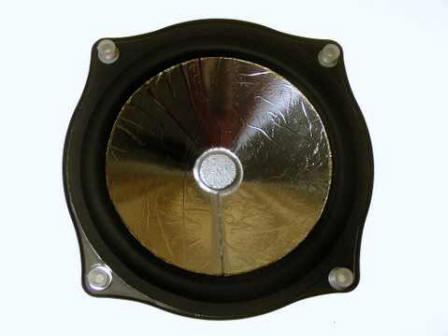

The Symphonic is closed box using a two-way hybrid combination. The bass driver is the well known Podszus-Görlich TT200/25, which is still available in its original version. Das enclosure is a sand-filled sandwich construction, which results in an incredible clean bass reproduction.
The cabinet for the ESL tweeter and the OTL tube amplifier V-typ-MHT on top of SYMPHONIC enclosure
For more information go to our catalogue site
Other Examples of Shackman reromanus products

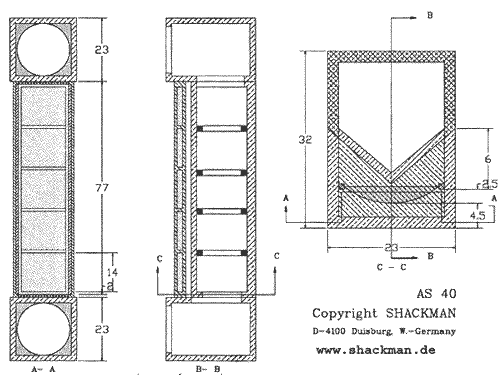

Shackman AS40, reviewed and tested in ELEKTOR 1990, optimized quasi D'Appolito principle with 5 ESL/Barker Code
AS40 comes in two versions. Firstly with the ESLs Shackman MHT and WHD bass drivers, and secondly with ESLABs and Peerless bass drivers
Get the SHACKMAN AS40 Elektor review
Get an impression of the new Shackman ESLAB standard version (not Barker coded)
The Shackman ESLAB, final version 2020
Some pictures of vintage and actual drivers and tweeters available on our catalogue site for your DIY projects
Peerless HDS Series Podszus-Görlich TT202/25/8

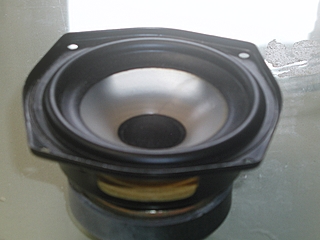

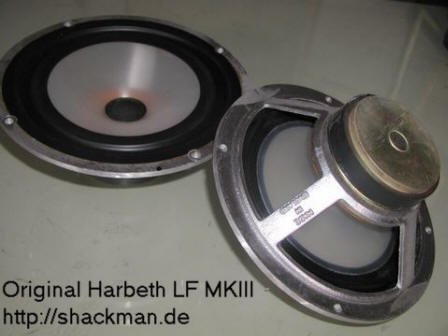

DECCA-KELLY 8" Bass Harbeth LF5 MKIII

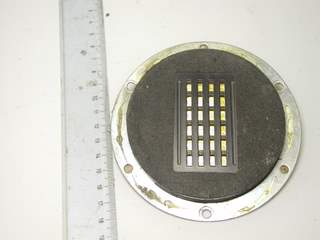

Audax TW8B Fostex FT3RP
Some pictures of vintage and actual drivers and tweeters available on our catalogue site for your DIY projects
This section will be expanded every once and a while.
Please come back later.
